Kee Pivot Pallet Gate

Mezzanine Safety Gate

Designed to provide safe access for factory and warehouse workers who are responsible for loading and unloading pallets onto mezzanine floors or raised working surfaces.

Overview Benefits Standards FAQs Downloads Gallery

Raising the bar of safety

Moving pallets around factories and warehouses can cause several safety issues. When a worker needs to load and unload pallets on mezzanine floors, they could end up falling from a height. Kee Pivot pallet gates eliminate this safety issue. A simple solution that results in employees always being separated from the hazard.

Why do you need Kee Pivot?

Quality

Our pallet gates are designed to fit seamlessly into a new or existing guardrail or barrier and ensure there is continuous protection in place while goods are being moved either up to or down from the mezzanine.

Multiple Configurations

Kee Pivot is available in four configurations to provide flexibility whether you require extra width, depth or a combination of both, all while providing the same 6’6” head clearance.

Easy Maintenance

Kee Pivot Pallet Gates are constructed using Kee Klamp^® and Kee Lite^® fittings. Due to the nature of the system, if the pallet safety gate is damaged from a forklift or general use, the individual fittings can be easily replaced.

Key Features

No Welded Parts

Any damage can be easily repaired, keeping the gate operational.

Steel or Aluminum

Available in galvanised steel or aluminum depending on requirements.

Low Maintenance

Minimal number of moving parts for lower maintenance.

Quick to install

Will be supplied part assembled to help with on-site installation.

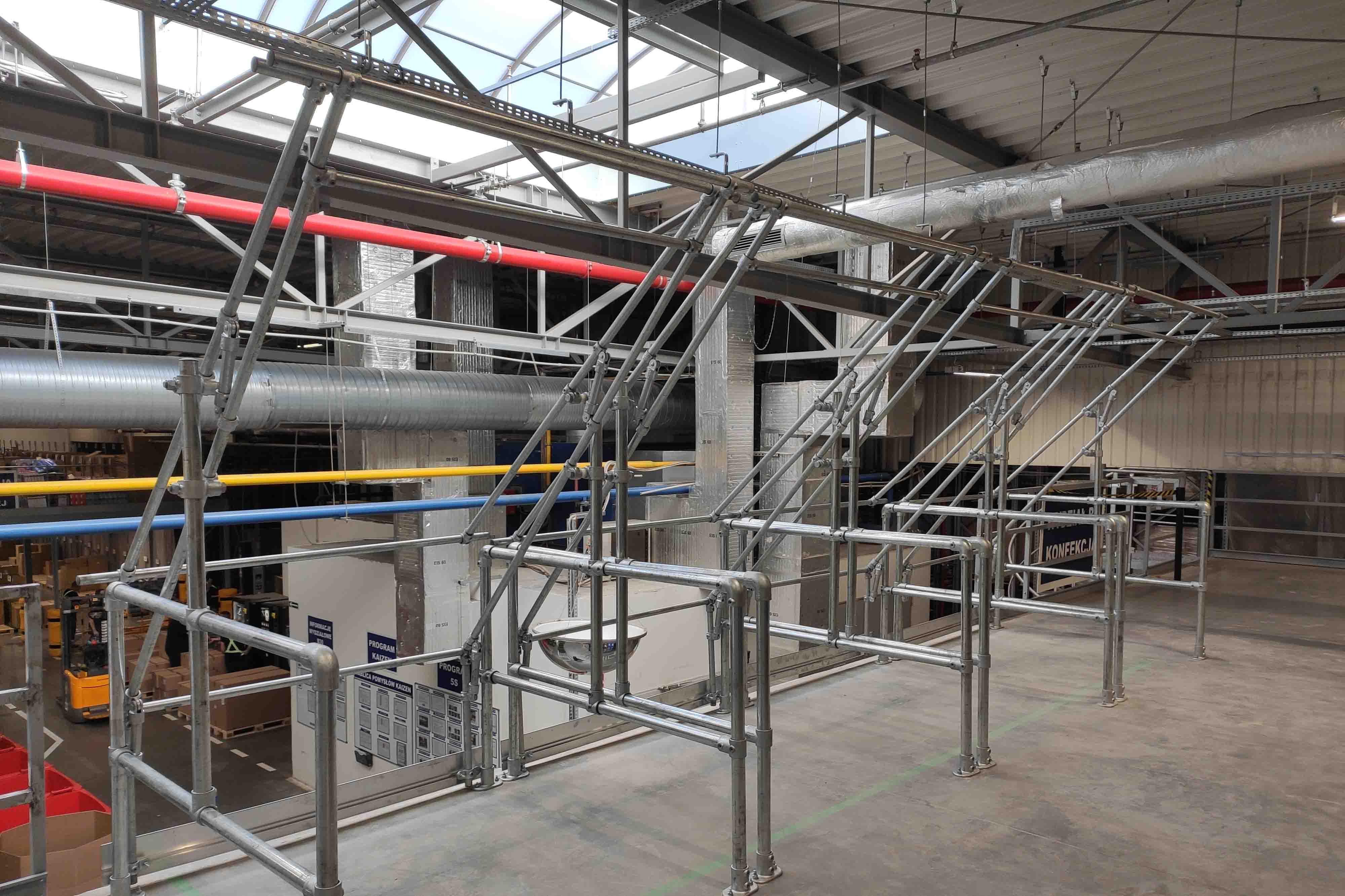

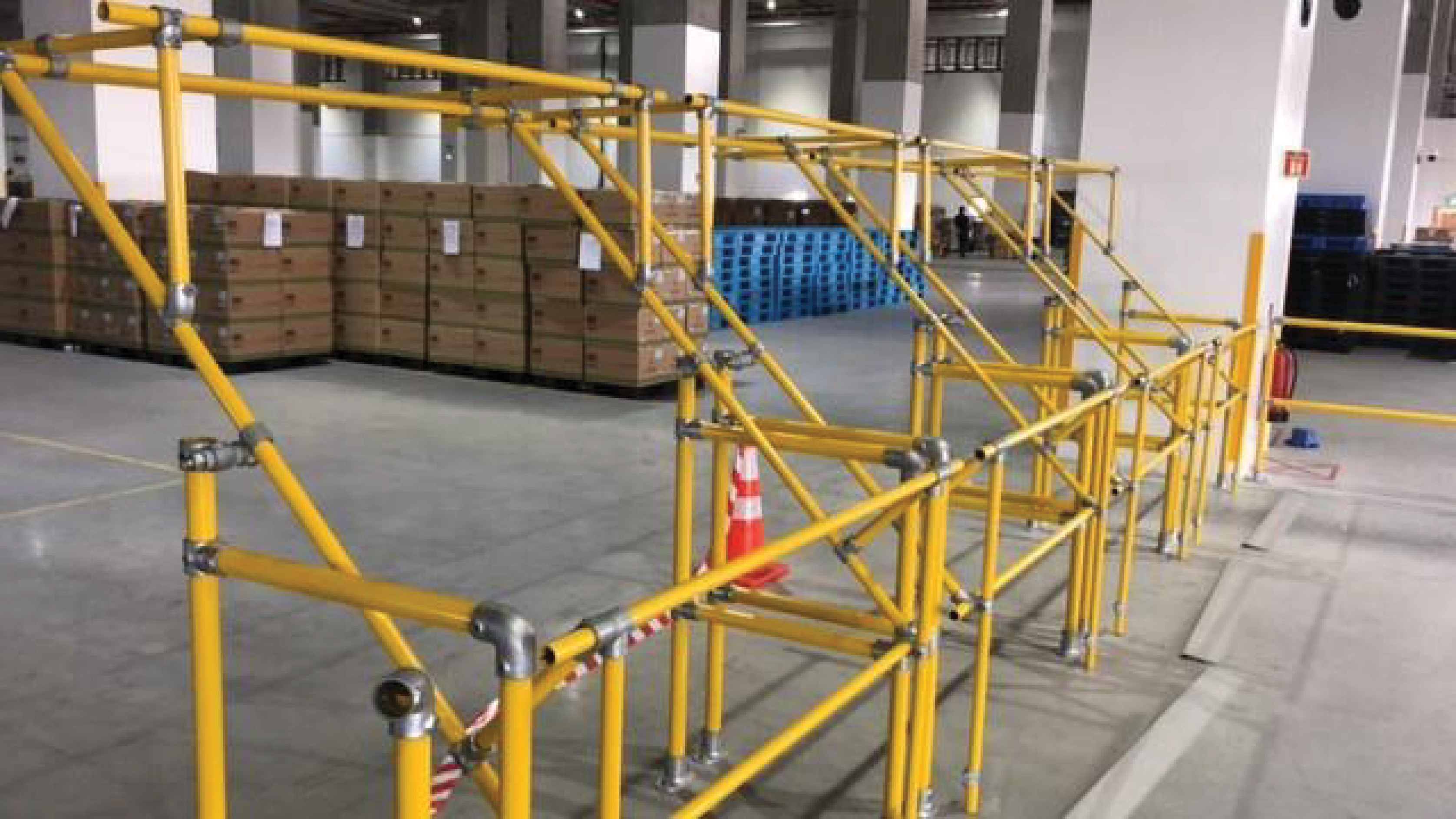

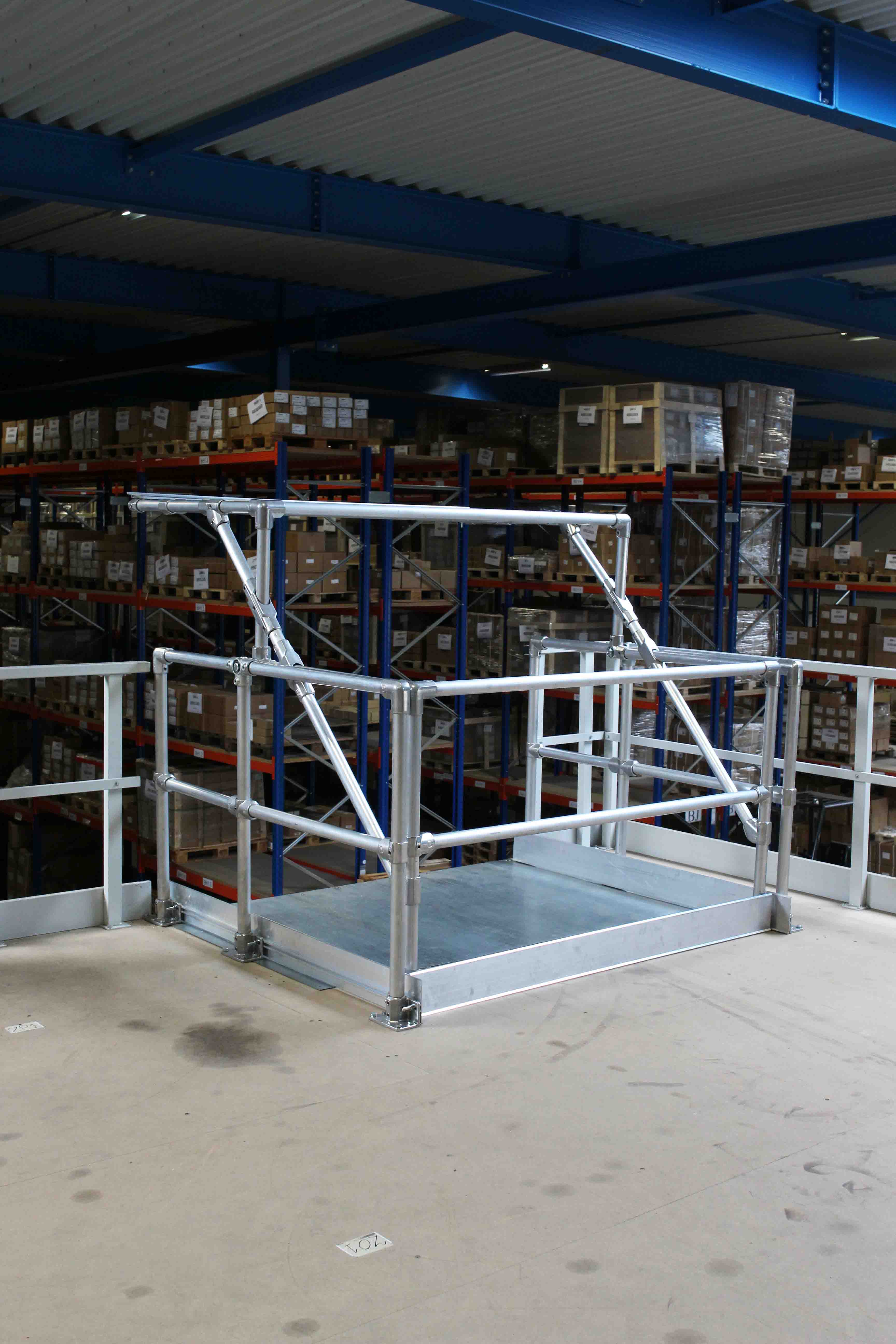

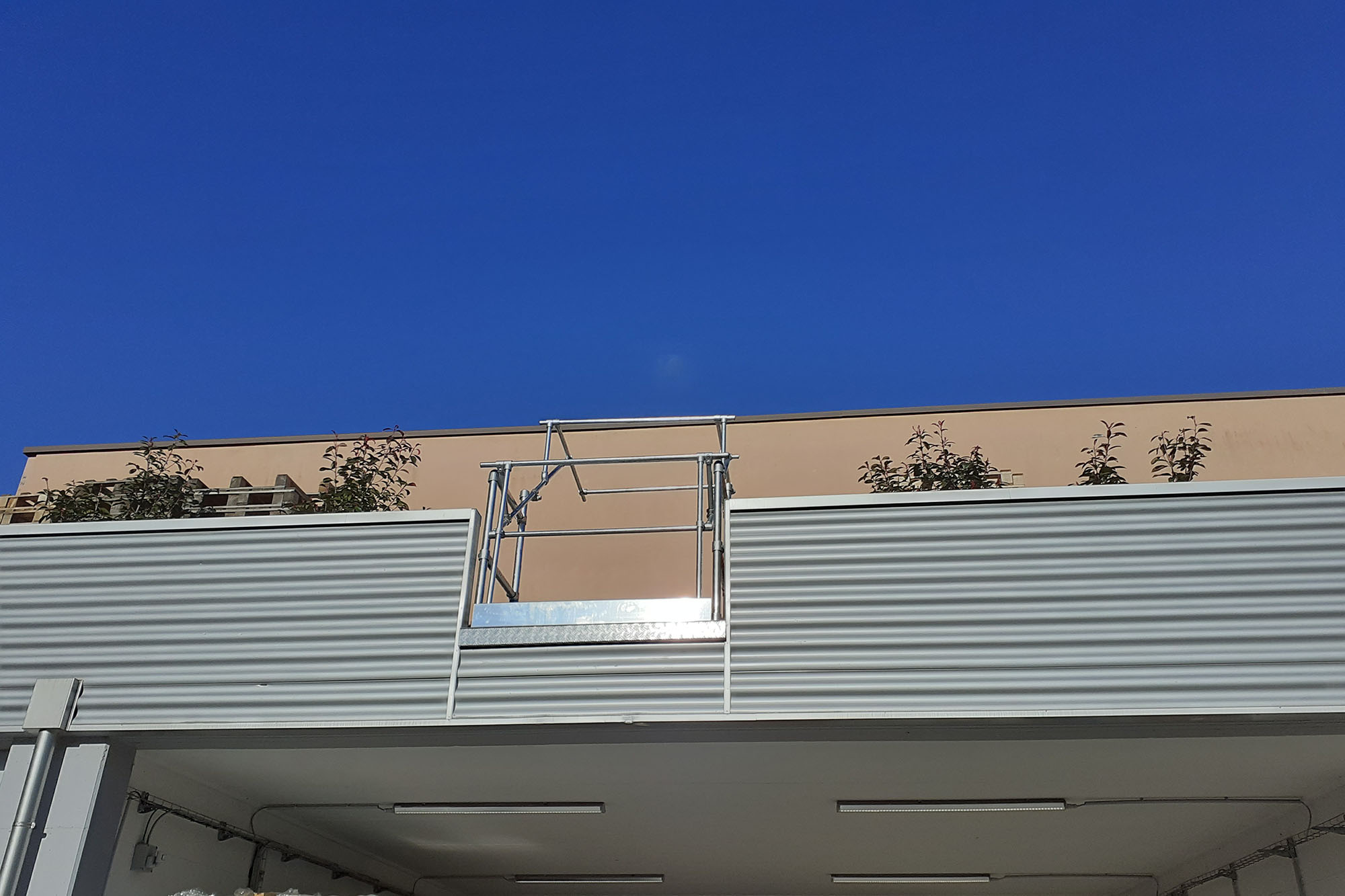

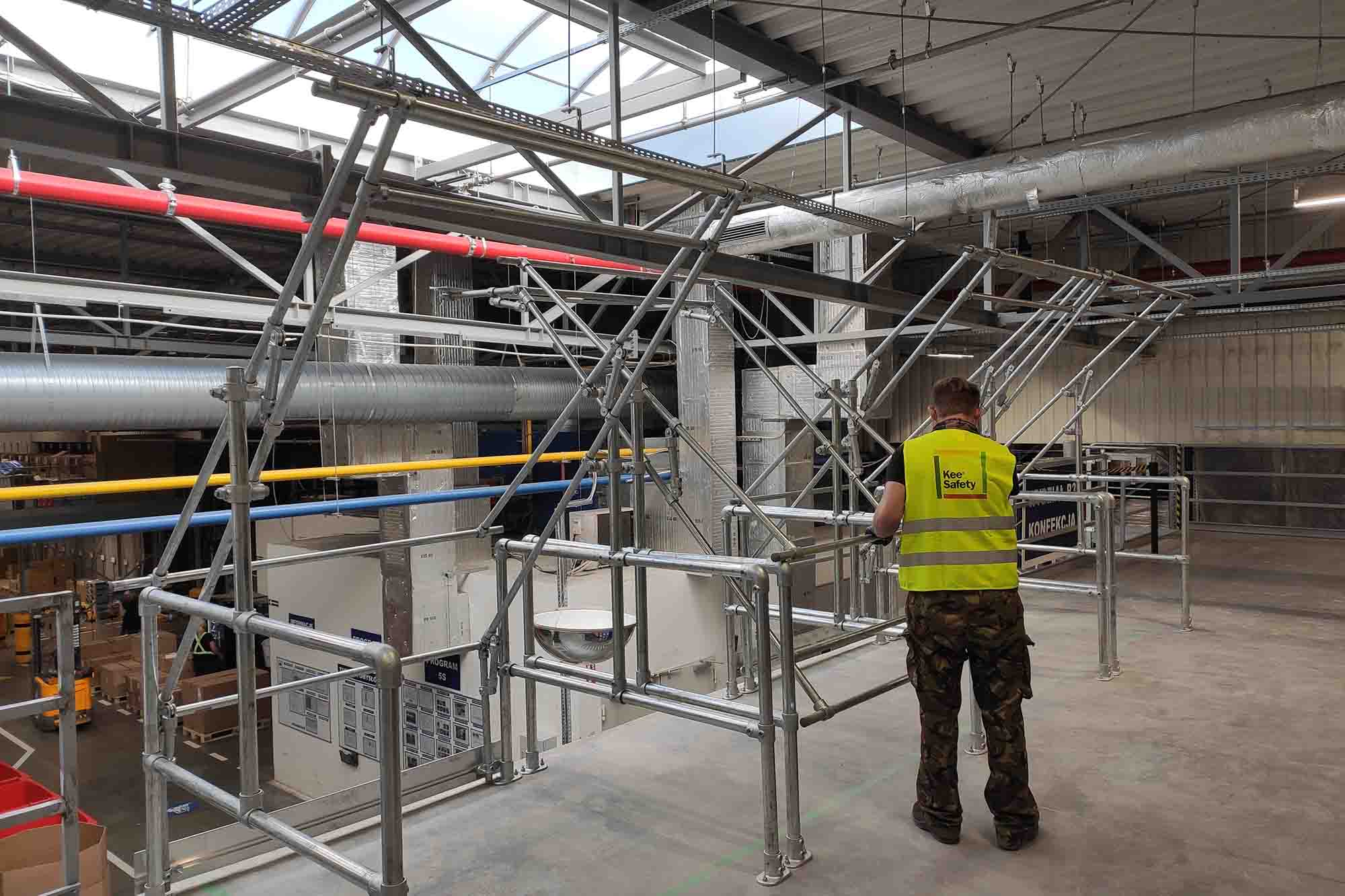

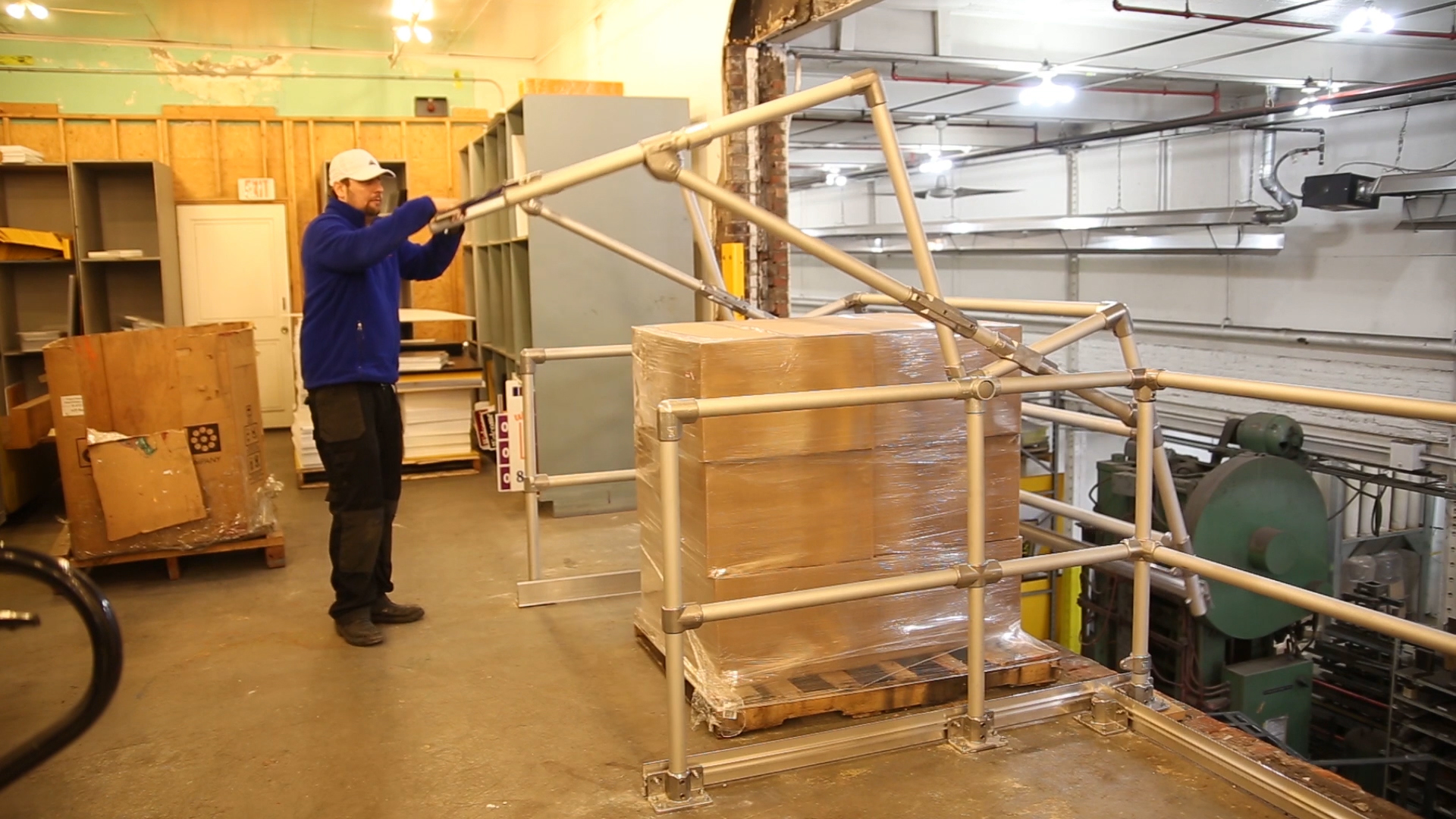

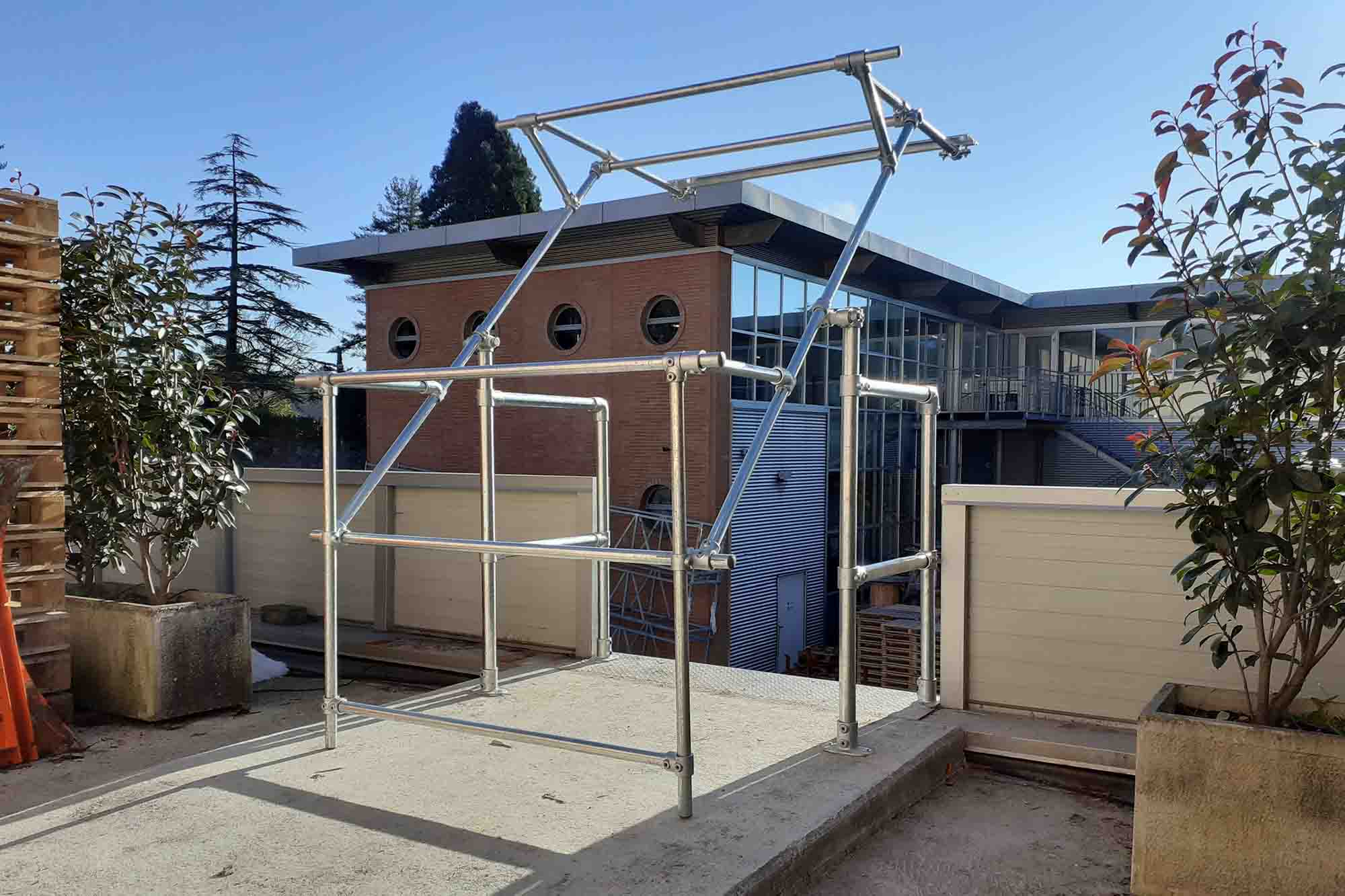

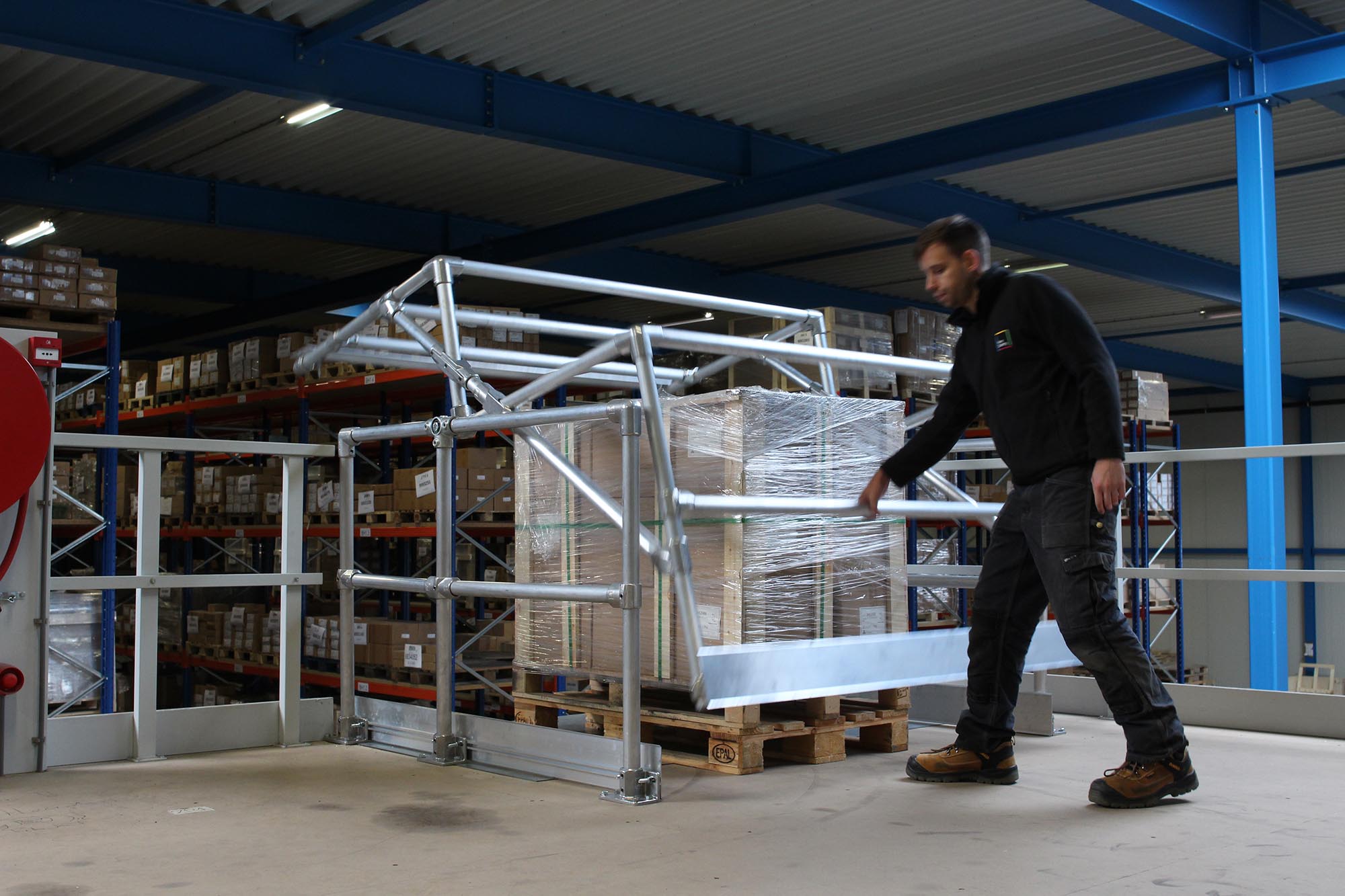

Kee Pivot in Action

Choose from Four Configurations

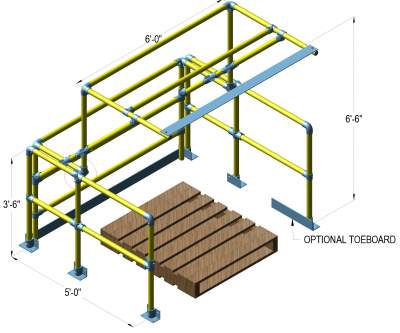

Kee Gate® Pallet | Puertas de seguridad para palés | Puertas de seguridad | Puerta para palés estándar

Standard Pallet Gate: 6’ x 5’

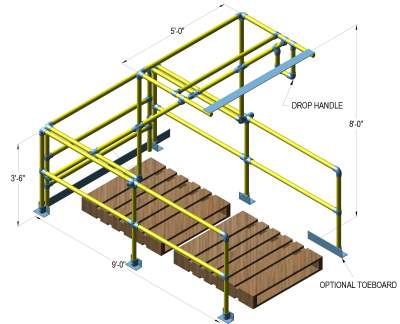

Kee Gate® Pallet | Puertas de seguridad para palés | Puertas de seguridad | Puerta para palés de doble profundidad

Double Depth Pallet Gate: 5’ x 9’

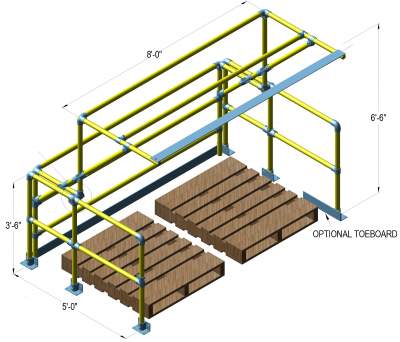

Kee Gate® Pallet | Puertas de seguridad para palés | Puertas de seguridad | Puerta para palés de doble anchura

Double Width Pallet Gate: 8’ x 5’

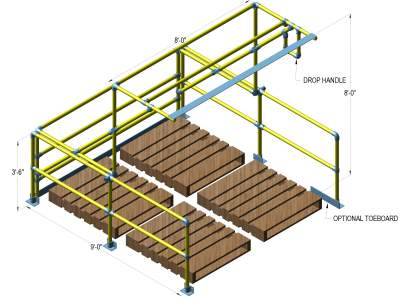

Kee Gate® Pallet | Puertas de seguridad para palés | Puertas de seguridad | Puerta para palés de tamaño completo

Full Size Pallet Gate: 8’ x 9’

Get in touch with our sales staff

Highest standards for access safety

Compliant with EN 14122-3 and OSHA requirements for assured safe operation
Built using Kee Klamp and Kee Lite fittings, TUV approved components for quality assurance
System meets or exceeds all relevant testing standards providing an OSHA solution
Tested to North American standards

Certified at our advanced testing facility

Kee Safety runs one of the world’s leading test and training centers at its UK Head Office. Run by a team of industry experts, this state-of-the-art facility ensures Kee Safety meets the needs of its customers, provides them with fully compliant products, and drives new innovation with the purpose of separating people from hazards.

Frequently Asked Questions

General

- How does the Kee Pivot Gate ship?

  The Kee Pivot Gate typically ships with pre-cut pipe with the cantilever side arms assembled. To save on lead time, however, some customers may opt to have the Kee Pivot Pallet Gate ship completely unassembled.
- How do I install the Kee Pivot Pallet Gate?

  Installation of the Kee Pivot Pallet Gate is simple to complete with a basic set of tools. For complete installation guide check out this video:
- I have low ceiling clearances – can I still use a Kee Pivot Gate?

  Yes, custom pallet gates can be designed to work around low ceilings or small floor areas. Simply contact one of our experts to assist you in solving the problem.
- I have chains in front of my pallet loading area, do I need a pallet gate?

  Yes. In it’s most recent fall protection code update OSHA stated that it does not consider chains to protect workers from falling through railing entrances. The reason is simple – to detach and reattach the chain workers have to stand right next to the fall hazard, Using the Kee Pivot Pallet Gate eliminates the possibility of a fall completely.
- How difficult is it to raise and lower the Kee Pivot Pallet Gate?

  The Kee Pivot Pallet Gate has cantilever arms designed to balance the weight of the arms for a single person to easily operate. For our largest size, however, we recommend ordering in aluminum to reduce the total weight.
- My forklift damaged the Kee Pivot Pallet Gate – what do I do now?

  The beauty of all Kee Safety systems is that they are component based using Kee Klamp fittings. Simply dissemble the fittings in the damaged area and replace with new fittings and pipe.
- What finishes are Kee Pivot Pallet Gate available in?

  Kee Pivot Pallet Gate is available in galvanized steel, aluminum, and custom powder coat finishes.

Trusted Fall Protection for Recognized Brands

Kee Pivot Case Studies

Pallet Gate for Safety Transfer of Material to Mezzanine

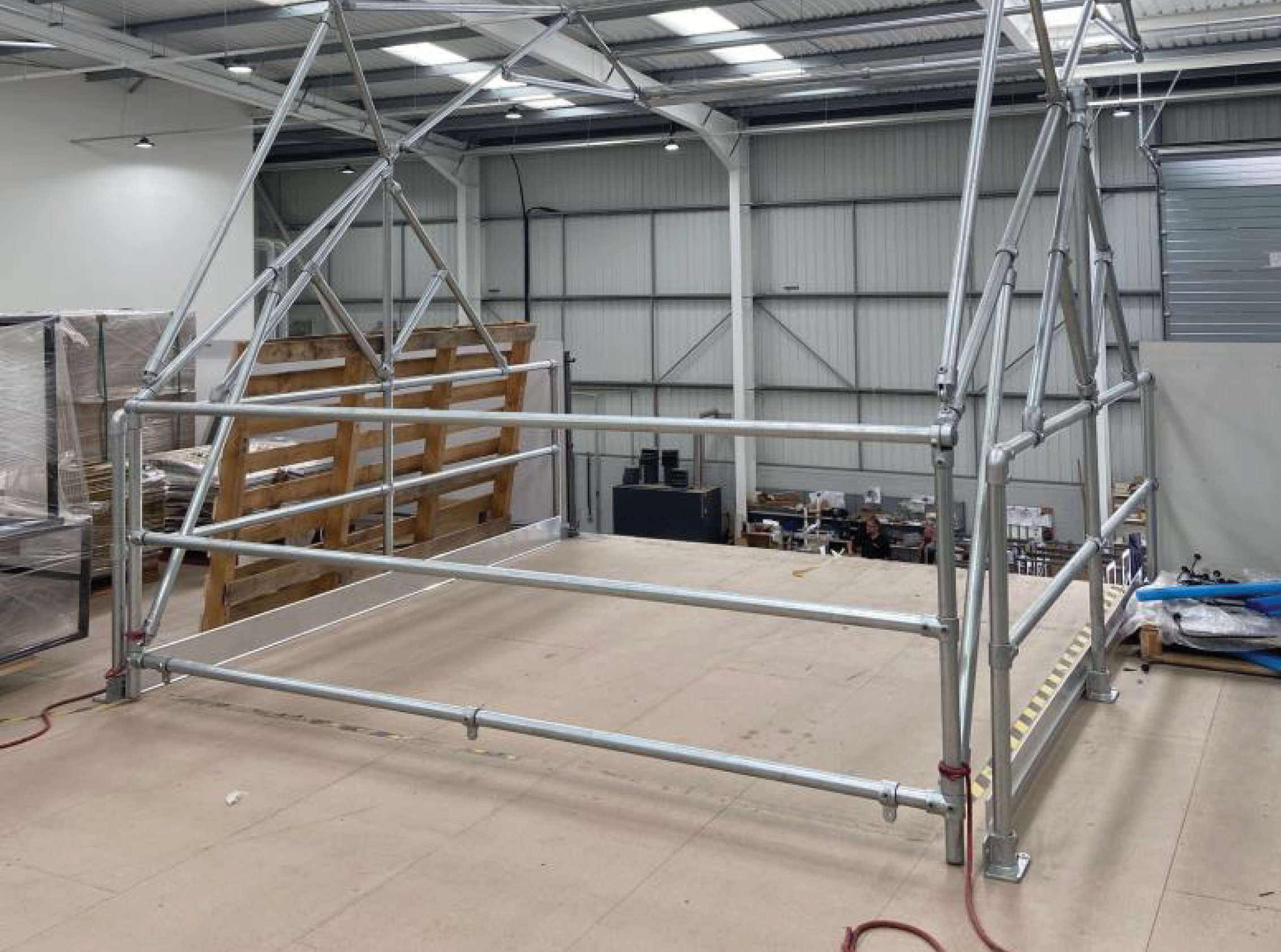

Aspen Concepts Type G Pallet Gates

Pallet Gates and Handrails to Provide Forklift Safety

Pallet Gates and Ground Based Railings

Kee Pivot Downloads

Document	Format
Kee Pivot Gate Operation and Maintenance Manual	PDF Download
Kee Pivot Gate Data Sheet	PDF Download
Kee Pivot Gate Sales Brochure	PDF Download

Document	Format
Kee Pivot Gate Operation and Maintenance Manual	PDF Download
Kee Pivot Gate Data Sheet	PDF Download

Document	Format
Kee Pivot Gate Operation and Maintenance Manual	PDF Download
Kee Pivot Gate Sales Brochure	PDF Download

Document	Format
Kee Pivot Gate Data Sheet	PDF Download
